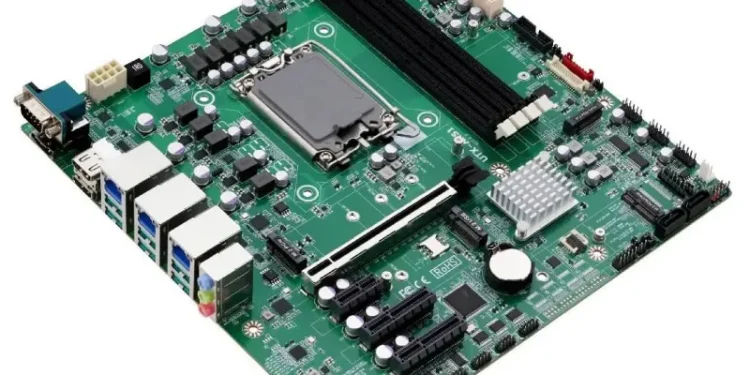

AAEON Technology Corporation declare The MAX-Q870A and MAX-H810A microATX motherboards are designed for commercial and industrial use. The first new product is suitable for artificial intelligence and machine vision applications, and the second new product is suitable for industrial automation and embedded systems.
Both models are powered by the LGA 1851 version of the Arrow Lake-S generation Intel Core Ultra 200S processor. Operating temperature range is -20 to +60 °C. It indicates compatibility with Windows 11 and Linux Ubuntu 24.04.2. Product size is 244×244 mm.
Version MAX-Q870A It uses the Intel Q870 chipset and supports chips with TDP up to 125W. Four CU/U-DIMM slots are available for DDR5-6400 modules with a total capacity of up to 256GB. This drive connects to two SATA-3 ports with RAID 0/1/5 capabilities, as well as M.2 2242/2280 M-Key (SATA / PCIe 4.0 x4) and M.2 2242/2260/2280/22110 M.Key (P4) slots for SSDs. The product features PCIe 5.0 x16, PCIe 4.0 x4 (×2) and PCIe 4.0 x1 slots for expansion cards, M.2 2230 E-Key connector for Wi-Fi adapter (PCIe 4.0 x1; USB 2.0) and BUS25302B for 45/530 2.002/5025302 (BUS/KKeyG 253002/53025302 (B2G1K 302B/5302/3025302 (B.253) 3.2 / USB 2.0) modem (plus Nano-SIM slot). Via two HDMI 2.1 ports (up to 4096 × 2160 pixels; 60 Hz), DP1.4a interface (up to 4096 × 2160 pixels; 60 Hz) and LVDS (1920 × 1200 pixels; 60 Hz) to output images to four monitors simultaneously.

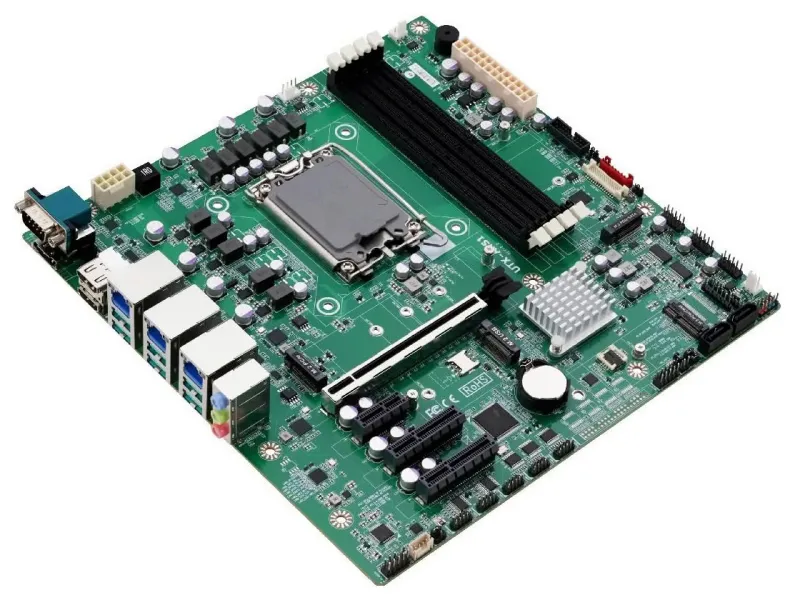

Image source: AAEON
This motherboard features Intel I226-LM, Intel I226-V and Realtek RTL8156 2.5GbE network controller, Realtek ALC897 audio codec and Fintek F81966 I/O chip. It comes with six USB 3.1 Type-A ports, three RJ45 jacks for network cables, a serial RS-232/422/485 port, and a set of 3.5mm audio jacks.
Version MAX-H810AIn turn, it features the Intel H810 chipset, which allows the use of processors with a TDP of up to 65 W. There are two CU/U-DIMM slots for DDR5-6400 memory modules with a total capacity of up to 128 GB, two SATA-3 ports with RAID 0/1 support, and an M.2 2242/80 M-Key connector for SATA SSD. Expansion options include PCIe 5.0 x16, PCIe 4.0 x4 and PCIe 4.0 x1 slots and M.2 2230 E-Key connector (PCIe 4.0 x1; USB 2.0). This motherboard is equipped with dual-port Intel I226-V 2.5GbE network controller, Realtek ALC897 audio codec and Fintek F81966 chip. This group interface includes a DP 1.4a and LVDS, two HDMI 2.1, two RJ45 jacks, an RS-232/422/485 serial port, a set of 3.5 audio jacks, and two USB 2.0 Type-A, USB 3.0 Type-A and 3.1 Type-A ports.
